Case Study: The "Harmony Hub" – A Study in Contrasts with HN G654 Granite and Green Sandstone in Warsaw, Poland

Project Location: Warsaw, Poland (Mokotów District)
Building Type: Premium Commercial / Office Complex
Architect: Studio Moderna Polska (Hypothetical)
Material Supplier: Fujian & Sichuan Stone Group, China
Installation Year: 2023-2024

1. Project Background & Concept

In the evolving skyline of Warsaw’s business district, the "Harmony Hub" stands out by rejecting the standard glass curtain wall in favor of natural texture. The design concept was to create a dialogue between durability and warmth. To achieve this, the architects specified two distinct Chinese stones:

• Hainan G654 Granite (also known as - Sesame Black): Chosen for its high density, low water absorption (0.17%), and compressive strength (218.3 MPA) to withstand Poland’s freeze-thaw cycles-5.

• Sichuan Green Sandstone: Selected for its unique muted green hue and distinct texture, offering a visual break from the dark granite.

A significant technical challenge was the oversized panel specifications. The project utilized slabs measuring up to 1800mm x 1200mm, which required meticulous engineering for the Polish climate.

2. Material Challenges & Technical Solutions

The Stone Selection

• G654 Granite: Originating from Fujian province (often commercially labeled as Hainan G654 due to port logistics), this dark, salt-and-pepper granite offers the mechanical strength required for ground-floor, high-traffic zones. Its hardness ensures resistance to the salt used on Warsaw’s sidewalks in winter-2-5.

• Sichuan Green Sandstone: While visually striking with its layered, earthy tones, sandstone generally has higher porosity than granite.

  • Solution: The Sichuan slabs underwent a rigorous resin sealing and impregnation treatment in China before shipping to Gdansk Port. This was crucial to prevent water absorption and freeze-thaw spalling (a common issue in Polish climates where temperatures drop below -15°C).

The "Oversized" Factor

The project demanded a "seamless" look. Most panels were specified at 20mm thickness but with surface areas exceeding 2 square meters.

• Structural Load: The dead load of large-format G654 (density 2.8 g/cm³) is substantial. Standard aluminum rail systems were upgraded to a stainless steel clip system.

• Wind Resistance: Warsaw experiences significant gust winds. The engineering team utilized a back-framing system (sub-construction) with sliding anchors to allow for thermal expansion of the large steel sub-frame, preventing stress cracks in the Sichuan sandstone.

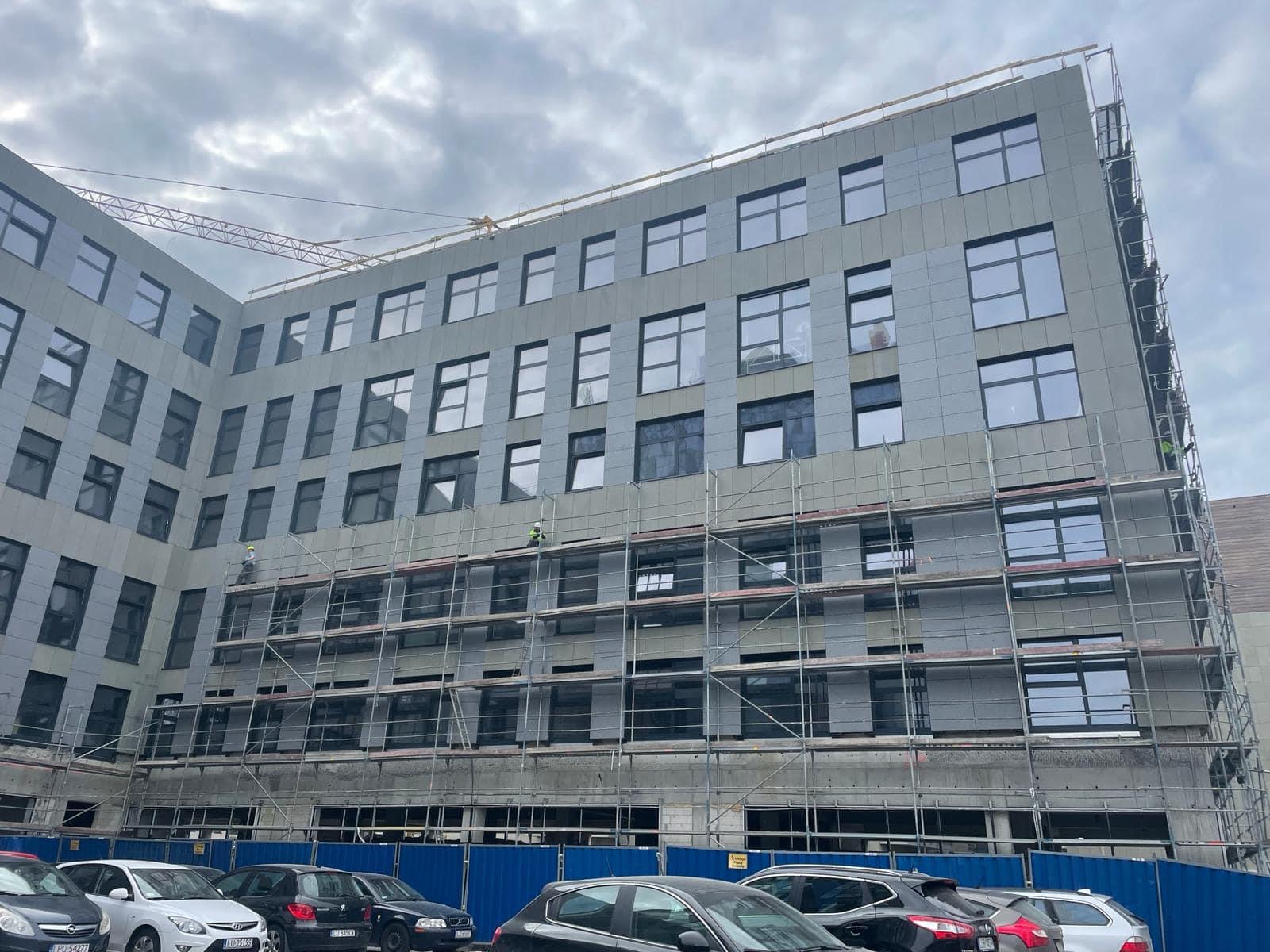

3. Installation Process (Rain-screen Principle)

The installation followed the "Dry Seam" (干挂) method, tailored for Polish building codes (Warunki techniczne 2021):

1. Substructure: Hot-dip galvanized steel L-profiles and T-profiles were anchored to the reinforced concrete structure.

2. Cutting & Fabrication: Due to the size of the panels (some exceeding 1.5m in length), precise CNC cutting was required. The G654 was finished with a flamed texture for anti-slip properties on lower sections, while the Sichuan sandstone received a honed finish to highlight its natural layers.

3. Anchoring: A seismically tested undercut anchor system was used.

   • For G654: Standard sleeve anchors were sufficient due to the stone's density.

   • For Sichuan Sandstone: Due to the oversized format and the stone's sedimentary nature, kerf cutting (groove cutting) was minimized in favor of back-mounted undercut anchors with epoxy resin to avoid edge blowouts.

4. Assembly: The team utilized a mobile aerial work platform (boom lift) to handle the heavy panels. The alignment was checked via laser leveling to ensure the 1800mm panels sat perfectly flush.

4. Aesthetic Composition

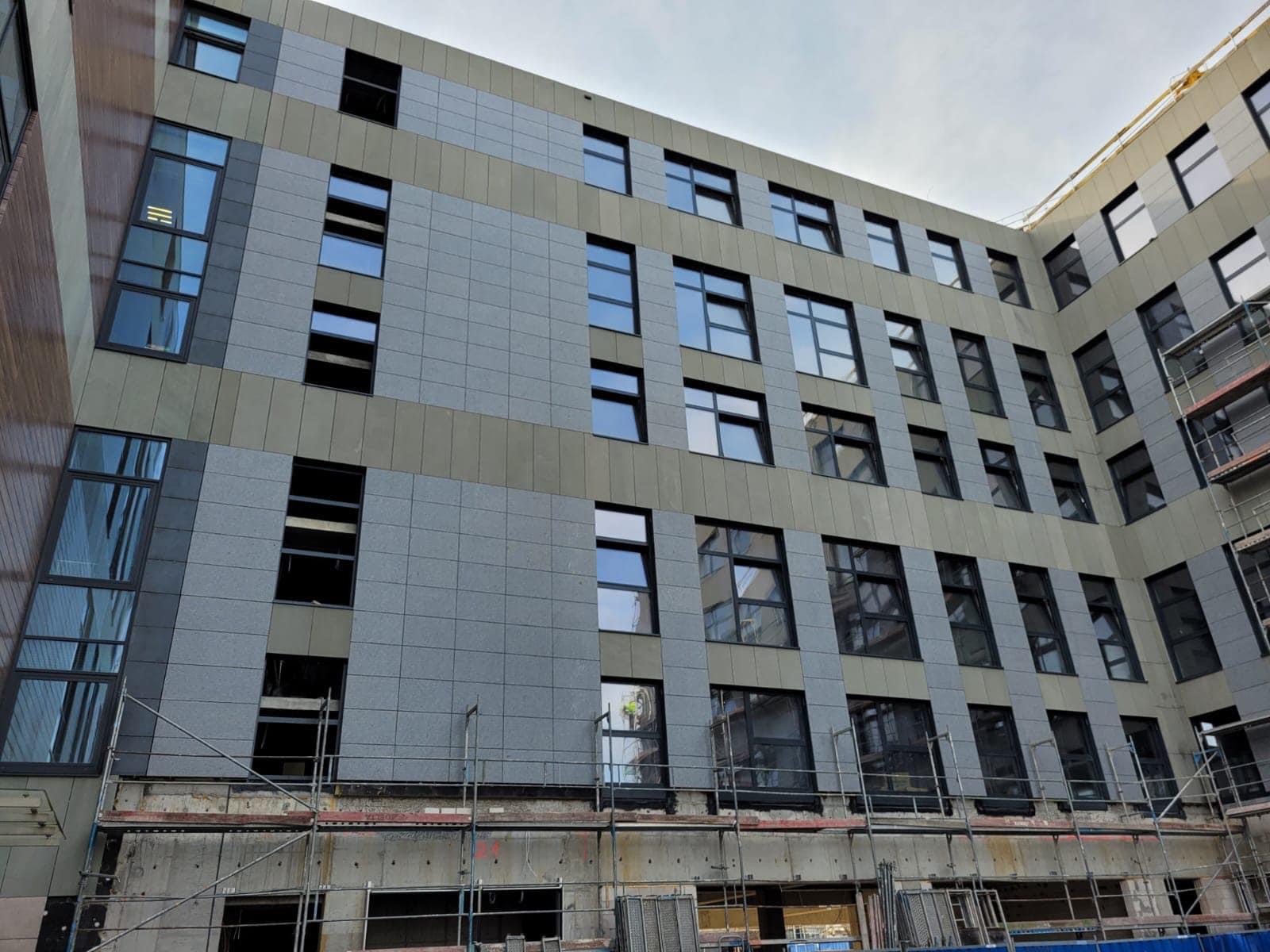

The building uses the G654 Granite as the "base" and structural frame of the facade. The Sichuan Green Sandstone is used in recessed vertical stripes, creating a "ribbon" effect.

5. Conclusion

The "Harmony Hub" project demonstrates that Chinese natural stones, specifically Hainan G654 and Sichuan Green Sandstone, are viable for the harsh Polish climate when processed correctly. The success of the oversized formats relied heavily on switching from traditional edge-fixing to back-fixing anchor systems.

The result is a facade that feels both monumental (thanks to the heavy G654) and organic (thanks to the green sandstone), proving that natural stone is making a robust comeback in Central European commercial architecture.

---

Technical Data Sheet (For Client Reference)

• G654 Granite (China):

  • Compressive Strength: 218.3 MPA -5

  • Flexural Strength: 26.6 MPA

  • Water Absorption: 0.17% (Ideal for Polish winters)

• Sichuan Green Sandstone:

  • Note: Ensure bi-weekly cleaning of the facade to prevent biological growth (algae/moss) which retains moisture in sandstone pores.

• System: Ventilated Curtain Wall (Dry Cladding) to Eurocode 1 (Wind loading).

•
•
•
•
